Ordering code: LMCHWS

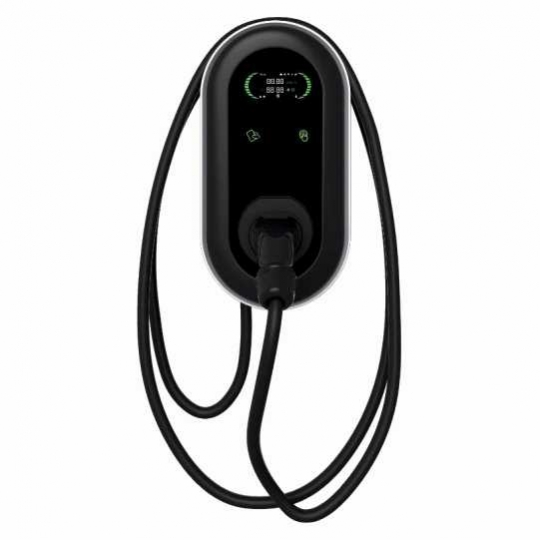

Wallpoint electric vehicle charger with plug for commercial use, especially for shopping park, underground garage or company parking, which can be installed on the wall or pedestal.

  • Charging up to 22 kW AC
  • Type 2 Plug (Mennekes) with 5m cables
  • Built-in 4,3" LED display and LED indicator of charging status
  • Equipped LAN connection, GSM or WiFi (on request)
  • Optional - charging app for payment
  • Optional - integration with lighting and dynamic load management
Parameter Value Parameter Value
Input voltage AC 3x230 V Protection type IP55
Total maximum output power 22 kW Charging connector Type 2 plug with 5m cables
Maximum output current

32 A

Operating ambient temperature -30 °C ~ +55 °C
