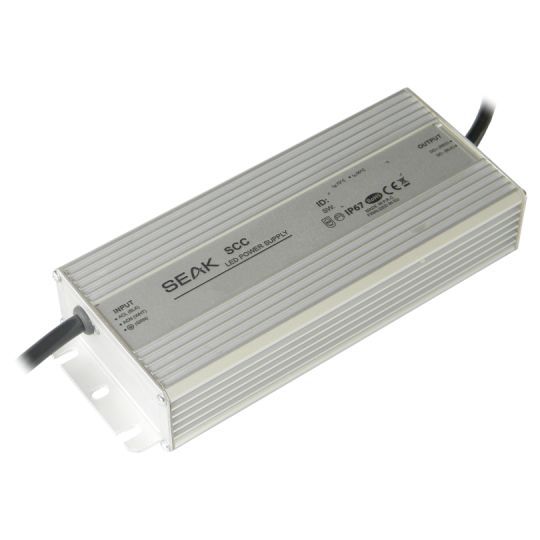

LED DRIVER SCC120W

LED DRIVER SCC120W

Ordering code: SCC-120W

  • Constant current output
  • Built-in module for smart dimming and PLC control
  • Constant lument output
  • Adjustable output current
  • Short circuit, over voltage, over temperature protections
  • Cooling by free air convection
  • Encapsulated with IP67 level
Typ Output current Output voltage Max. output power
SCC 120W 450 mA 200 - 267 V 120 W
700 mA 129 - 172 V 120 W
1050 mA 109 - 145 V 120 W
1400 mA 65 - 86 V 120 W
1750 mA 60 - 80 V 120 W
2100 mA 43 - 58 V 120 W
2800 mA 32 - 43 V 120 W
3150 mA 17 - 39 V 120 W
4200 mA 21 - 29 V 120 W

Note: Possibility to adjust output parameters according to customers requirement

Parameter Value Parameter Value
Input voltage 220 - 240 VAC IP rating IP67
Input frequency 50 Hz Operating temperature -40 °C to +70 °C
Input current

0.6 A / 230 VAC

Maximum case temperature +80 °C
Power factor 0.96 / 230 VAC Weight 930 g
Efficiency 91% Dimensions (LxWxH) 228x65.5x39.5 mm
