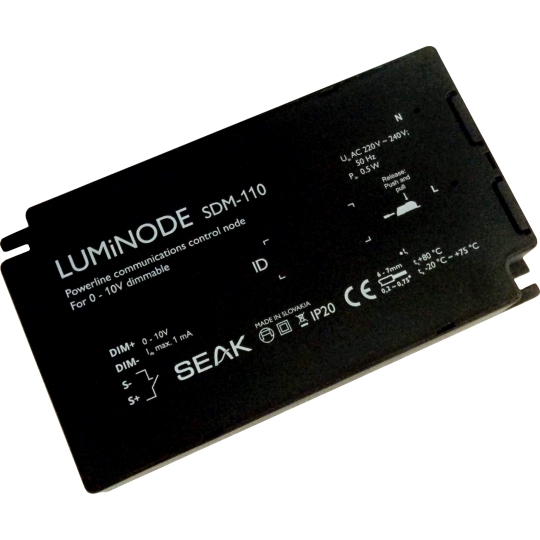

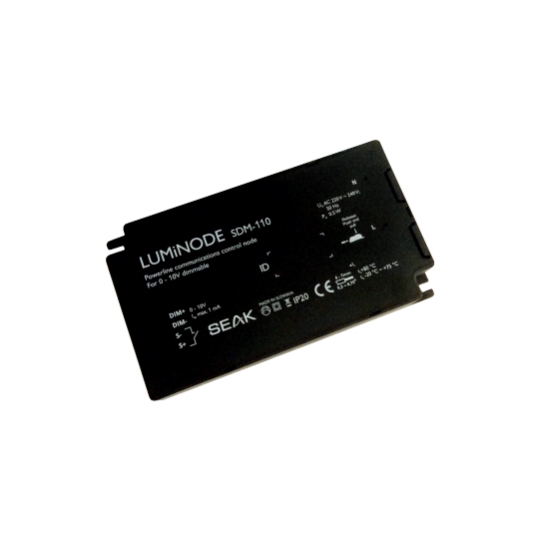

LUMiNODE SDM-110

LUMiNODE SDM-110

Ordering code: LMN110

LUMiNODE SDM-110 module changes your LED luminaire into a smart, dimmable and power-line-controllable luminaire. It should be applied in smart lighting management system with motion detection for luminaires with 0-10 V analogue input. The LUMiNODE SDM-110 listens on input 230 V powerline for commands from SEAK modulator. It gets assigned an ID and supports full range of dimming commands (individual, group, and broadcast level), partnight dimming schedule programming for standalone operation and CLO function. It has no circuits for sending a reply.

  • One-way powerline communication QM-50-SSI3
  • Setting the control intensity levels according to DIN input switching
  • Regulation from 0 to 100%
  • Can control multiple* 0-10V (at least 2)
Parameter Value Parameter Value
Input voltage AC 220V - 240V; 50 Hz IP rating  IP20 / IP65
Consumption 0,5 W Operating temperature -20 °C ~ +75 °C
Communication interface 1-way powerline QM-50-SSI3 Weight 90 g
