Ordering code: LMCHWMPLRF (Powerline control)

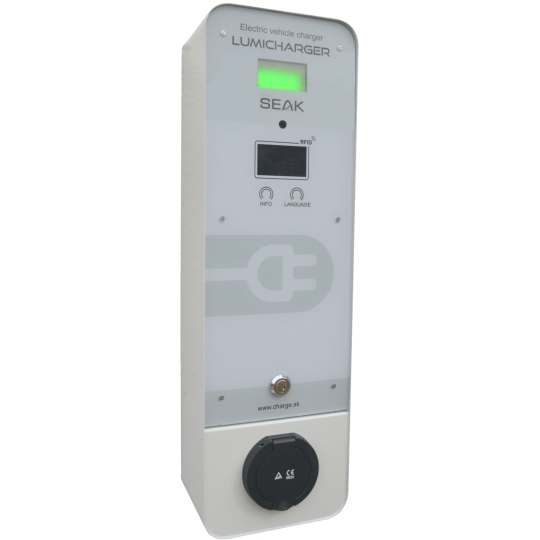

Wallpoint electric vehicle charger with 1 sockets, which can work independently or communicate with Seak lighting control system to negotiate the power available for electric vehicle (EV) charging.

  • Compatible with SEAK SMART CITY lighting control
  • Standalone electric vehicle charger with 22 kW socket (Type 2, Mennekes)
  • Management connectivity: RS485 or powerline
  • Charging information shown directly on the display
  • Multilingual
  • RFID or QR-code authenticated charging
  • OCPP 1.6 support via management controller
  • Payment collection via
Parameter Value Parameter Value
Input voltage AC 3x230 V Own consumption max. 6 kW
Total maximum output power 22 kW Communication interface 2-way powerline QM-50-SSI3 or RS485
Maximum output current

3x32 A

Operating ambient temperature -25 °C ~ +50 °C
