Ecobox mini

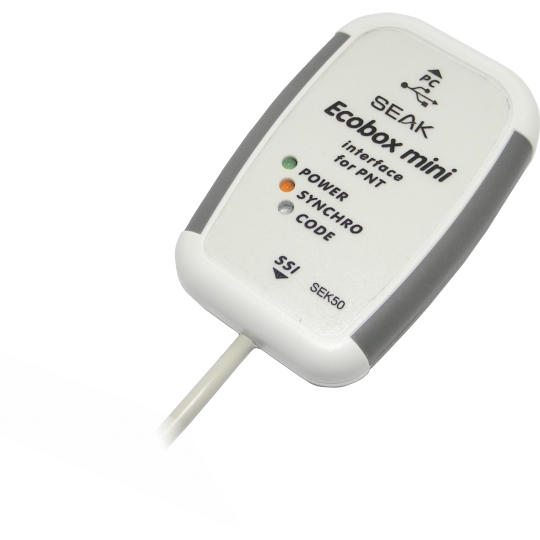

Ecobox mini

Ordering code: ECOBOX-MINI

Programmer Ecobox mini is used for dimming sequence programming for the compatible HID ballasts, LED drivers and DIMBAR modules.

  • Powered by USB
  • Translating and sending of commands from the Ecostreet app. to the SSI interface
  • Overcurrent protection
  • Designed for LUMiBOX modulators and older PNT modulators with a SSI interface
Parameter Value Parameter Value
Input voltage 5 VDC Operating temperature -25 °C to +60 °C
Current 25 mA IP rating IP20
Consumption

0.2 W

Weight 50 g
Communication interface USB, SSI Dimensions (LxWxH) 48x75x13 mm
