Outdoor lighting

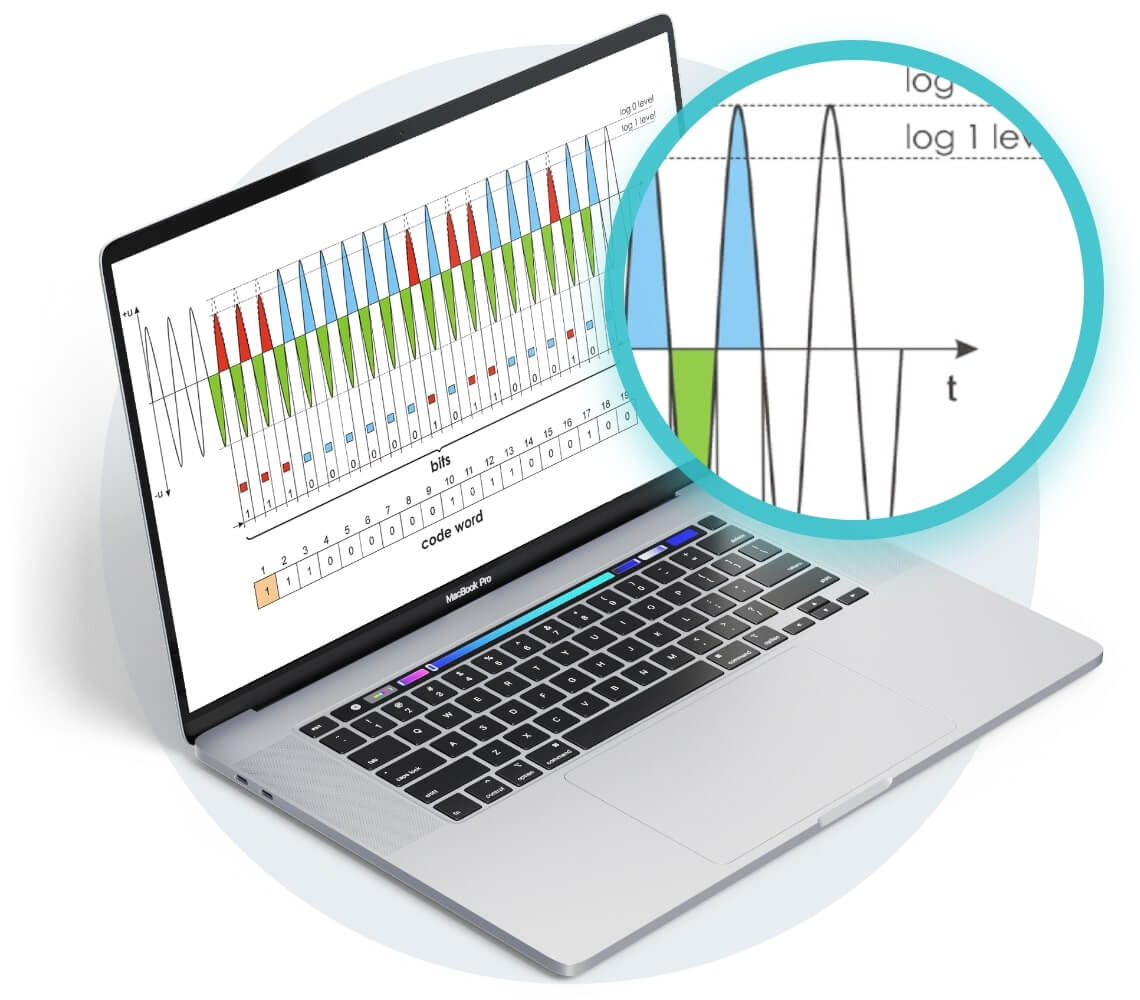

The technology uses 230V powerlines to transmit control signals. However, unlike traditional LON-based powerline communication, SEAK technology is based on harmonious half-sine wave voltage reduction at speed of 50Hz to generate coded words. That makes it an outstanding method at signal distribution on long distances and especially in questionable mains environment.

What’s unique about

  SEAK Powerline LON-based solutions
Maximum distance over powerline 5km+ no repeaters Require repeaters above 500m
Max. logical group per line 255 per line 127 per segment
HF suppressing filters No Required
Procedure to check possibility to deploy Simple Special measurements necessary
Possible distortions of el. sine wave No Likely
2-way communication Yes Yes
Bandwidth 50bit/s 78kbit/s
Dimensions Good value Not so good
CE certified Yes Yes

SEAK Product Line

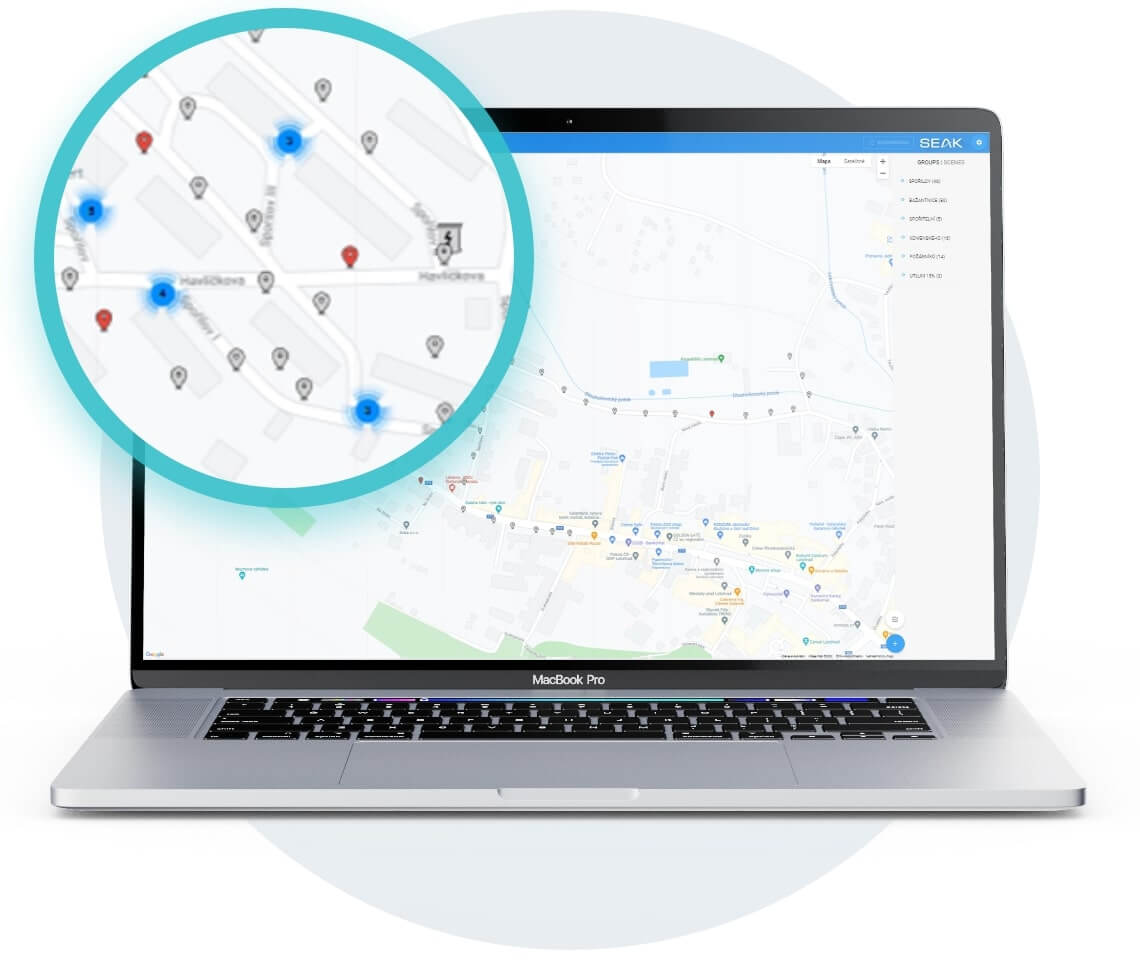

In order to implement fully online controlled lighting solution in the town, we need to have signal demodulators (receivers) in the luminaires and signal modulators (transmitters) in electric cabinets.

Case Study

Kropyvnytskyi, Ukraine

Our Ukrainian partner Hidden Energy installed 157 lamps equipped by Seak components in Janovska street and Mezevoj Bulvar. Read more...

Ptruksa, Slovakia

The modernization of street lighting was realized in Ptruksa in December 2015.           Read more...

Street Lighting Control
