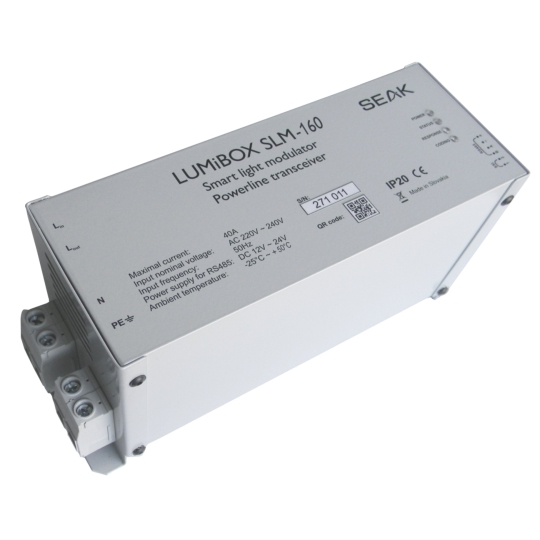

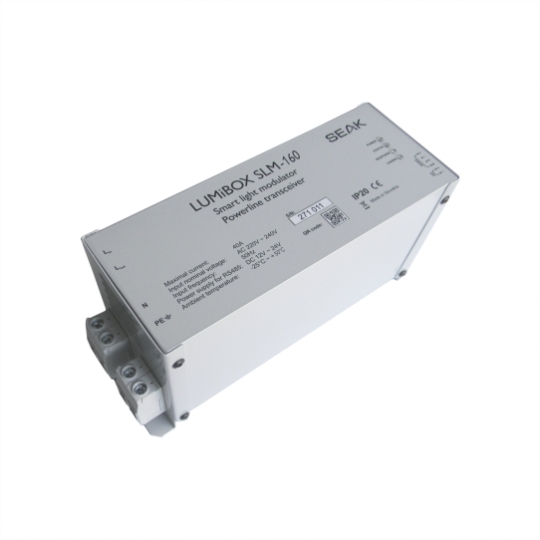

LUMiBOX SLM-160A

LUMiBOX SLM-160A

The modulator unit LUMiBOX SLM-160A (Smart Light Modulator) forwards control commands received from a control unit via RS485 through powerlines to luminaires with installed LUMiNODE modules. In case of luminaires equipped with certified DALI drivers and LUMiNODE SDM-DIG or LUMiNODE/NEMA7 the unit is able to receive status reports from those drivers and will send them to the control unit.

  • Two-way powerline communication QM-50-SSI3
  • Thermal protection and Overcurrent protection
  • Communication with the controller via RS485 bus (MODBUS protocol)
Parameter Value Parameter Value
Input voltage AC 220 V ~ 240 V; 50 Hz Operating ambient temperature -25 °C to +50 °C
Max. operating current 63 A IP rating IP20
Idle consumption

3,3 W

Weight 1980 g
Interface RS485 Dimensions (LxWxH) 270x85x116 mm
