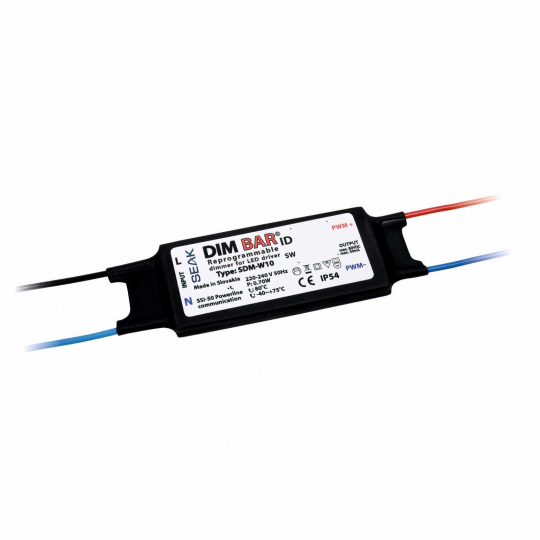

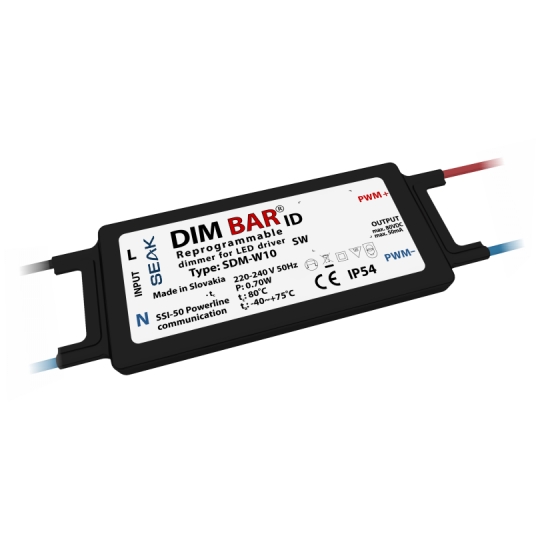

DIM BAR SDM-W10

DIM BAR SDM-W10

Ordering code: SDM-W10

DIM BAR® SDM-W10 is versatile, adaptable, yet low cost and easy to use dimming module designed for electrical energy savings in the indoor and outdoor lighting applications, offering low investment demands and quick payback. Thanks to its small size, DIM BAR® is capable to be placed inside basically any luminaire equipped with an LED driver.

  • Compatible with PWM dimming input
  • Powerline Communication
  • Programmable dimming sequence
  • Interior and exterior use
  • Compatible with most LED drivers
Parameter Value Parameter Value
Input voltage 220-240 VAC; 50 Hz Operating temperature -40 °C to +75 °C
Consumption 0,7 W Max. operating altitude 2500 m a.s.l.
Output

PWM

Max. wire size 0,5 mm solid
Power factor 0.99 / AC 230V Weight 20g
IP rating IP54 Dimensions (LxWxH) 70x33x7mm
