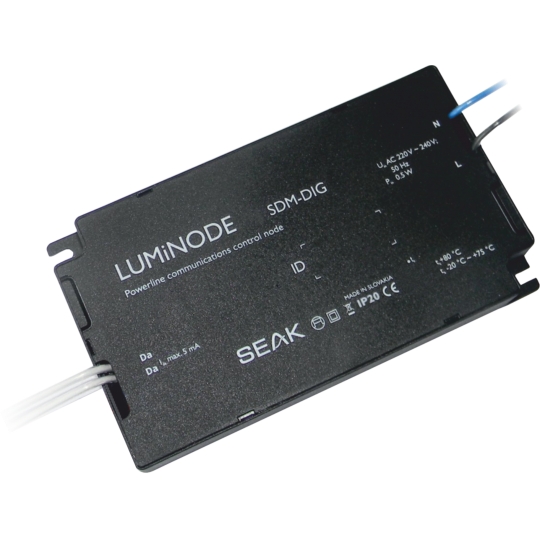

LUMiNODE SDM-DIG

LUMiNODE SDM-DIG

Ordering code: LMNDIG

The LUMiNODE SDM-DIG module is designed for two-way powerline communication of luminaires with a two-way bus driver compatible with IEC62386 interface (known as DALI) and the control unit over the powerline. The module acts as converter between the QM-50-SSI3 and IEC62386 Interface (DALI) protocols.

  • Two-way Powerline Communication QM-50-SSI3
  • Compatible with IEC62386 Interface (DALI)
  • Lighting control in real time
  • Autonomous lighting control
  • Optional - Setting the control intensity levels according to DIN input switching
  • Can control up to 2 drivers with IEC62386 interface (known as DALI)
Parameter Value Parameter Value
Input voltage AC 220V - 240V; 50 Hz Operating temperature -20 °C to +75 °C
Consumption 0,5 W Protection class II.
Output 2-way IEC62386 Interface Weight 95 g
IP rating  IP20 Dimensions (LxWxH)  123x70x16,5 mm
Product Type IP rating Input switching
LUMiNODE SDM-DIG IP20 no
LUMiNODE SDM-DIG-M IP20 yes
LUMiNODE SDM-DIG-IP IP65 no
LUMiNODE SDM-DIG-IP-M IP65 yes
