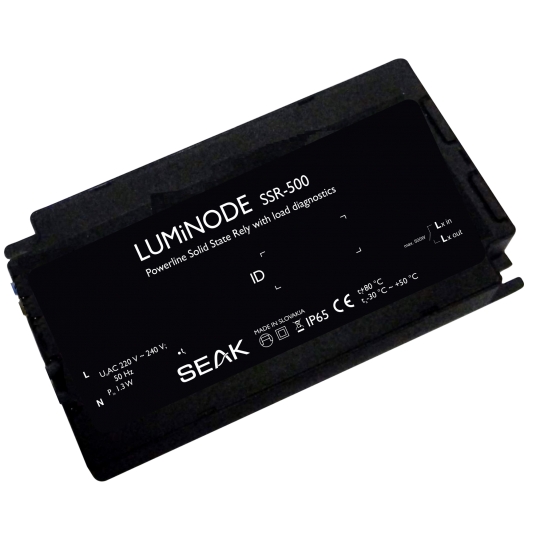

LUMiNODE SSR-500

LUMiNODE SSR-500

Ordering code: SSR500

Luminode SSR-500 switches the relay based on commands it receives over power line. It can also detect lamp error based on specified measured tolerance of selected parameters (current, power factor, ...).  Luminode SSR-500 listens to commands on phase L and switches the phase Lx. The Lx can be connected to L (if you want to switch the same phase that is used for communication), but you may also switch other phases (Luminodes are galvanically isolated).

  • Two-way powerline communication QM-50-SSI3
  • Allows not only turn on / off of lamp, but also detect lamp error
  • One module for multiple lamps, while the maximum switched power on Lxout does not  exceed 500 W
Parameter Value Parameter Value
Input voltage AC 220V - 240V; 50 Hz IP rating  IP65
Consumption 0,5 W Operating temperature -30 °C ~ +50 °C
Communication interface 2-way powerline QM-50-SSI3 Weight 220 g
