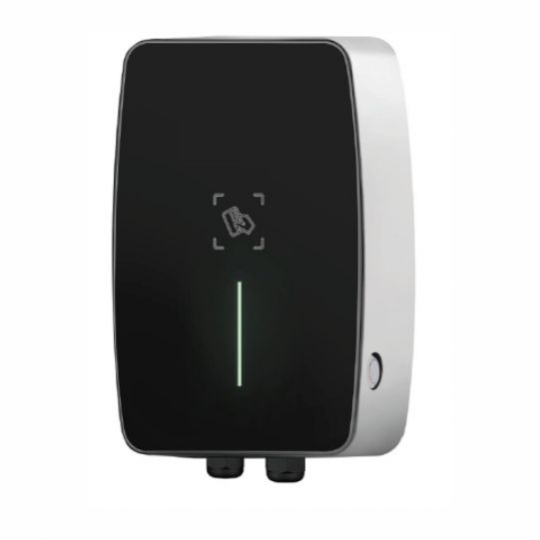

LUMiCHARGER WH

LUMiCHARGER WH

Ordering code: LMCHWH

Simple wallpoint electric vehicle charger with plug for domestic use, which can be installed on the wall or pedestal.

  • Charging up to 22 kW AC
  • Type 2 Plug (Mennekes) with 5m cables
  • Equipped LAN connection, GSM or WiFi (on request)
  • Built-in LED indicator (Green/Red) of charging status
  • RFID authenticated charging
Parameter Value Parameter Value
Input voltage AC 3x230 V Protection type IP55
Total maximum output power 22 kW Charging connector Type 2 plug with 5m cables
Maximum output current

32 A

Operating ambient temperature -30 °C ~ +55 °C
