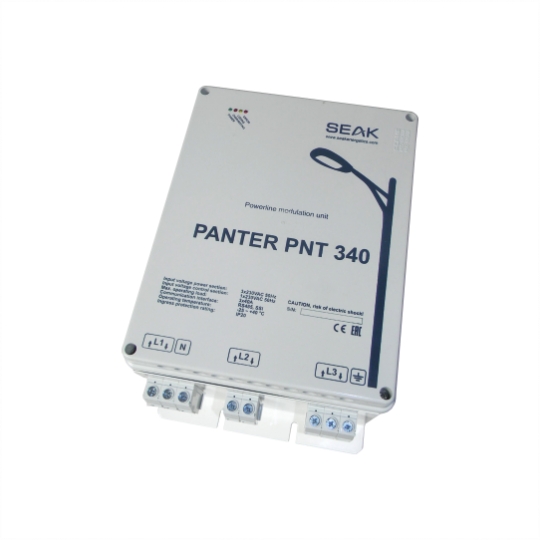

PANTER PNT-340

PANTER PNT-340

Ordering code: PNT340-2018

Panter PNT-340 is a three phases device for forwarding control commands through the power lines to lighting devices with installed Seak DIM BAR SDM or SDL modules designed to control them.

  • Powerline Communication QM-50-SSI1
  • Communication input RS485 (Modbus)
  • Temperature protection
  • Possibility to connect external electricity meter
Parameter Value Parameter Value
Input voltage AC 220 V ~ 240 V; 50 Hz Operating ambient temperature -25 °C to +40 °C
Max. operating current 40 A/phase IP rating IP20
Idle consumption

9,5 W

Weight 2600 g
Interface RS485, SSI Dimensions (LxWxH) 196x300x120 mm
