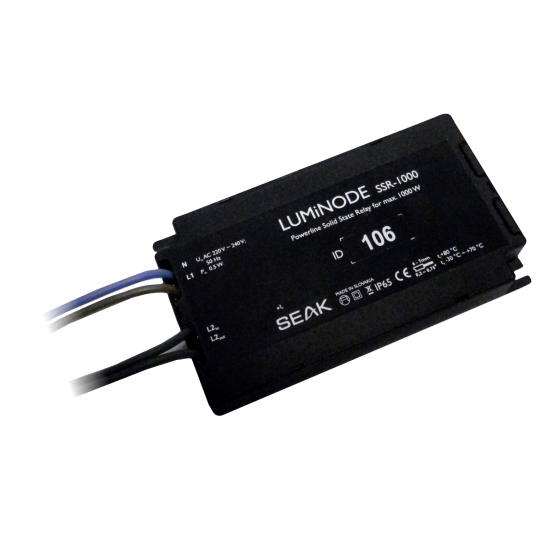

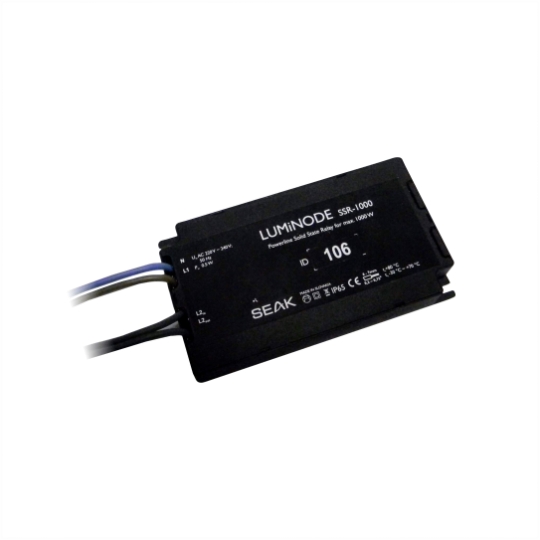

LUMiNODE SSR-1000

LUMiNODE SSR-1000

Ordering code: SSR1000

LUMiNODE SSR-1000 module is used for for remote switching of up to 1000 W line. Luminode SSR-1000 switches the relay based on commands it receives over power line. It listens to commands on phase L and switches the phase Lx. The Lx can be connected to L (if you want to switch the same phase on which we are communicating) but you may also switch different phase.

  • One-way powerline communication QM-50-SSI3
Parameter Value Parameter Value
Input voltage AC 220V - 240V; 50 Hz IP rating  IP65
Consumption 0,5 W Operating temperature -30 °C ~ +70 °C
Communication interface 1-way powerline QM-50-SSI3 Weight 90 g
