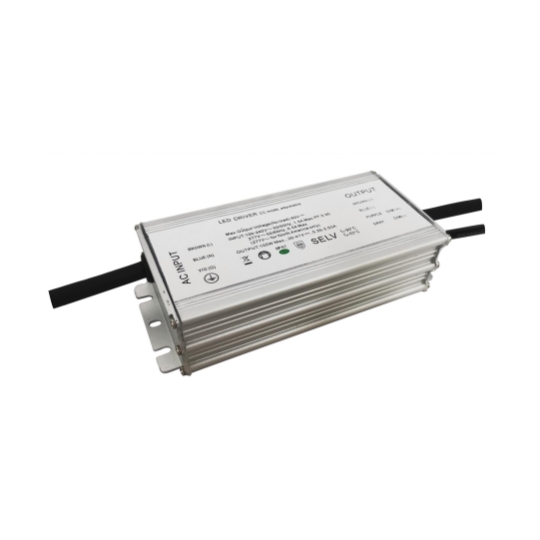

LED DRIVER SCC-320
Ordering code: SCC320XXX (XXX - number of model)
The LED DRIVER SCC-320 is programmable driver with multiple dimming capability 0-10 V or PWM and adjustable output current by software.
- One-way powerline communication QM-50-SSI3
- Built-in module for smart dimming and power line control
- Adjustable output current by software
- Protections: SCP/OVP/OTP
- IP67 design for indoor and outdoor applications
| Typ | Model | Output voltage (V) | Rated Current (A) |
|---|---|---|---|
| SCC 320W | 041 | 20-41 | 7.80-10 |
| 062 | 38-62 | 5.2-7.5 | |
| 143 | 50-143 | 2.24-3.2 | |
| 230 | 115-230 | 1.54-2.11 | |
| 457 | 228-457 | 0.7-1.1 |
Note: Possibility to adjust output parameters according to customers requirement
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input voltage | AC 220 V ~ 240 V | IP rating | IP67 |
| Input frequency | 50 Hz | Operating temperature | -40~+60 °C |
| Rated power |
320 W |
Maximum case temperature | +90 °C |
| AC Current (Max.) | 4 A max. at AC 230 V | Weight | 1300±100g |
| Current Tolerance | <5% | Dimensions (LxWxH) | 232x98.5x40.5 mm |
