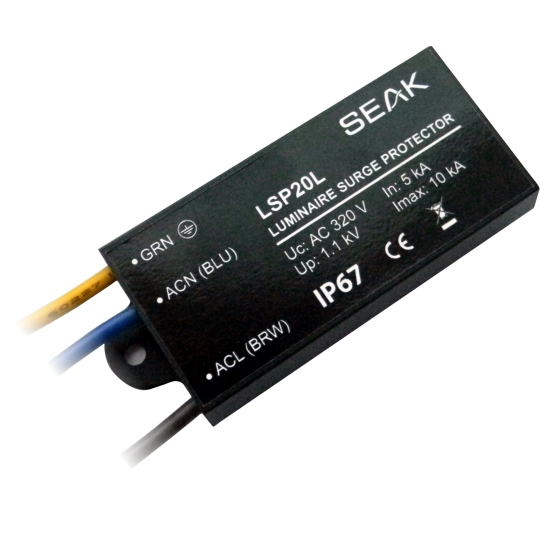

Luminaire Surge Protector LSP20L

Luminaire Surge Protector LSP20L

Ordering code: LSP20L500

LSP20L is a device that protects other electronic devices from surges in electrical power or transient voltage, that flow from the powerline.

  • Protection to LED luminaires against dangerous power transients
  • Maximalize the lifetime of outdoor lighting
  • For outdoor industrial and commercial applications
  • High discharge capacitance
  • Low voltage protection level
Parameter Value Parameter Value
Rated voltage AC390 V Response time 25 ns
Nominal discharge current 5 kA Operating temperature range -40 °C to +80 °C
Max. discharge current 10 kA IP Rating IP67
Nominal discharge voltage 10 kV Enclosure material Thermoplastic
Max. discharge voltage

20 kV

Dimensions (LxWxH) 81x37.6x13.5mm
Voltage protection level 1.1 kV Compliance with EN 61643-11:2012
