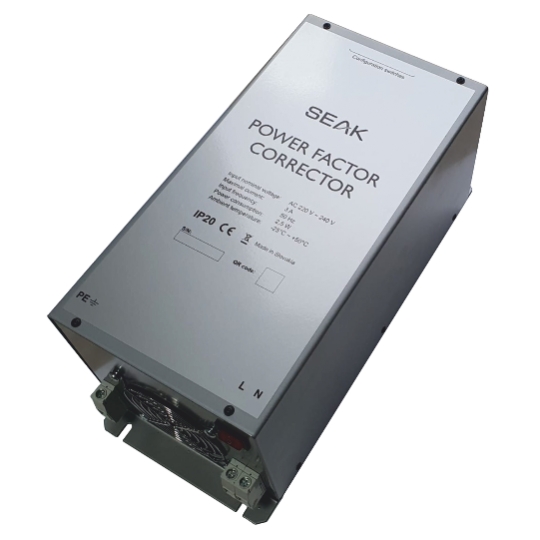

Power factor corrector

Power factor corrector

Ordering code: PFC

Power Factor Corrector is a single-phase electronic device designed to compensate the power factor of the network for lines of public lighting on which light sources with electric ballasts are mounted with a backward response along the supply line.

  • Power line protocol QM-50-SSI3
  • Max. operating time (switching on) is 5 minutes
Parameter Value Parameter Value
Input voltage AC 220 V ~ 240 V; 50 Hz Operating ambient temperature -25 °C to +60 °C
Max. current 3 A IP rating IP20
Power consumption

 2,5 W

Weight 8 000g
Power line protocol QM-50-SSI3 Dimensions (LxWxH) 377x170x168mm
