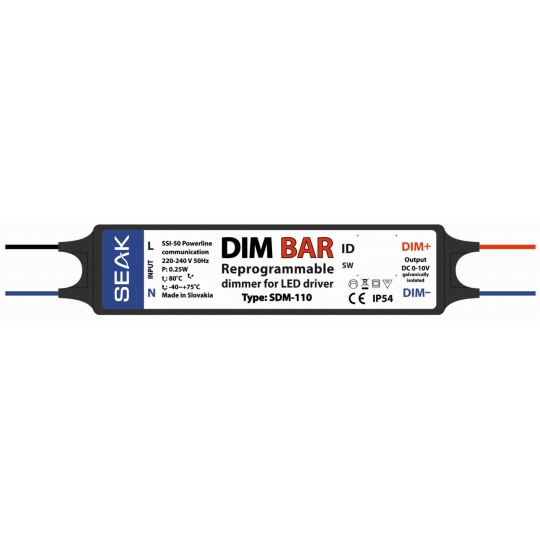

DIM BAR SDM-110

DIM BAR SDM-110

Ordering code: SDM110

DIM BAR® SDM-110 is versatile, adaptable, yet low cost and easy to use dimming module designed for electrical energy savings in the indoor and outdoor lighting applications, offering low investment demands and quick payback. Thanks to its small size, DIM BAR® is capable to be placed inside basically any luminaire equipped with an LED driver.

  • Compatible with 0 - 10 V dimming input
  • Powerline Communication
  • Programmable dimming sequence
  • Interior and exterior use
  • Compatible with most LED drivers
Parameter Value Parameter Value
Input voltage AC 220 V ~ 240 V; 50 Hz Operating temperature -40 °C to +75 °C
Consumption 0,25 W Max. operating altitude 2500 m a.s.l.
Output

0-10 V

Max. wire size 0,5 mm solid
Power factor 0.99 / AC 230 V Weight 37 g
IP rating IP54 Dimensions (LxWxH) 110x33x6 mm
